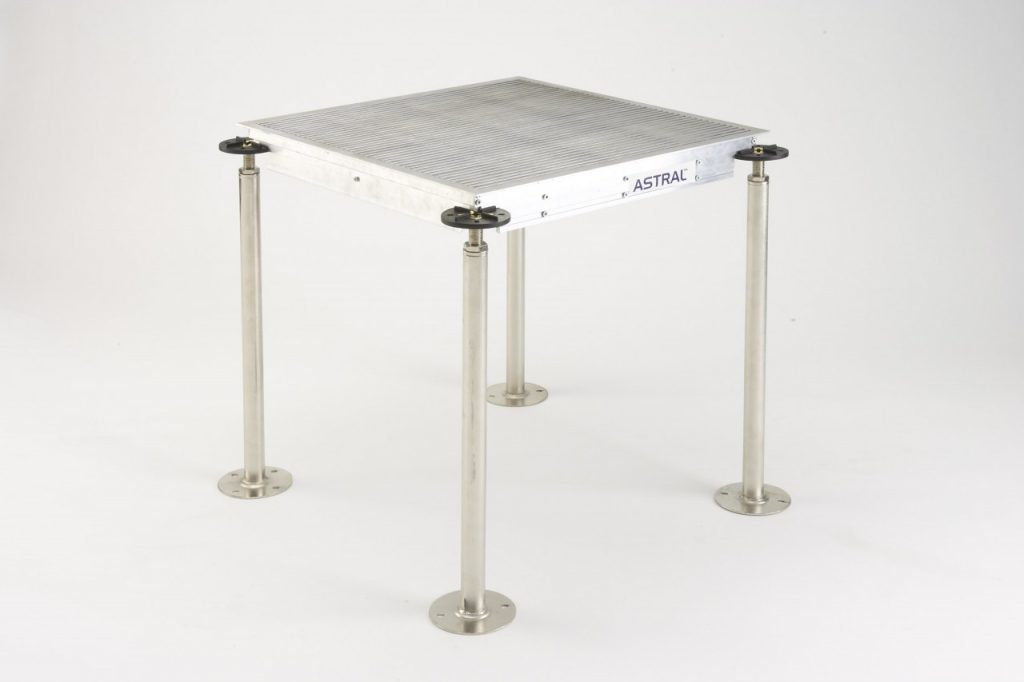

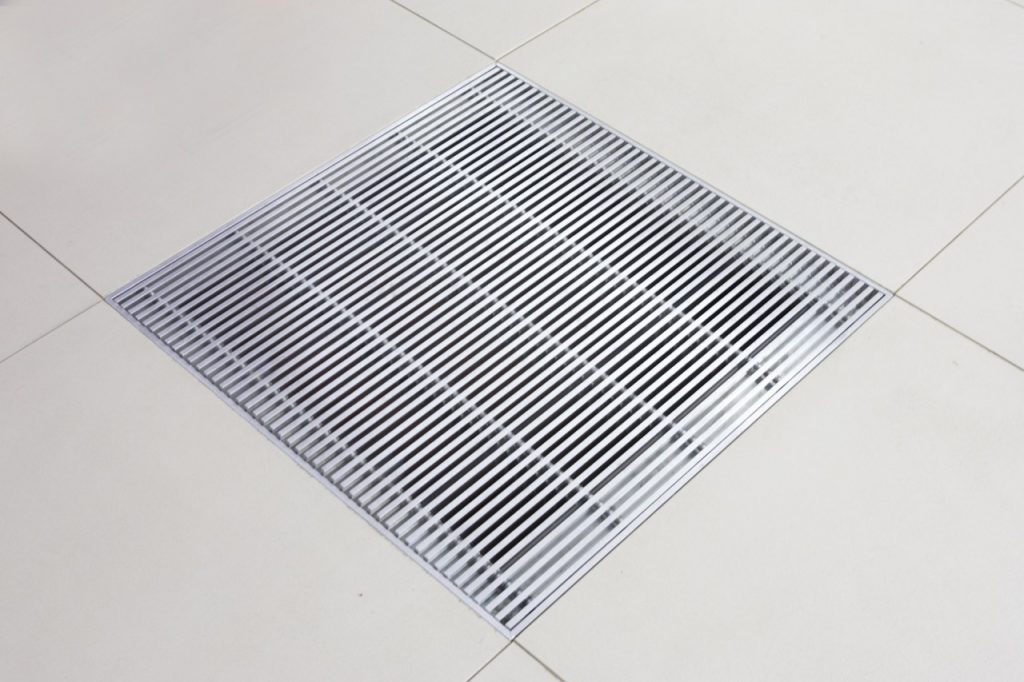

Metalfloor Aluminium Access Floor Grille – 599 x 599 mm PSA Extra – Heavy Grade / Without Damper

Metalfloor MFG.003 / 599 mm x 599 mm x *(specified panel depth) – Please select the required grille thickness from the drop-box at the time of ordering.

Manufactured to exacting tolerances in the UK this grille is compatible with the majority of raised access floor systems available.

This grille complies with the requirements of BS-EN 13264-2001

Constructed from heavy gauge aluminium extrusions, the frame is fully welded and the grille core is constructed from extruded aluminium bars with a 6 mm face thickness welded into the retaining frame.

The frame profile is designed to sit directly on to the pedestal cap earth tab, removing the need for additional earth bonding.

Extra Heavy Grade: Designed / Manufactured to meet “Extra Heavy” Static / concentrated point loads of 4.5 kN over 25 mm x 25 mm and 11kN applied over 4 number 25 mm x 25 mm on a 200 mm configuration as per BS-EN 13264:2001
